650×1500mm Cylindrical Fender Robust Build Low Aging Cost Effective
Description
Our cylindrical marine fenders come with multiple mounting configurations to suit various applications—from ports and jetties to offshore platforms. Made from high-tensile rubber compounds, these fenders provide a balance of elasticity and strength, adapting to dynamic berthing forces. Sizes range from 400mm to 1000mm, and installation can be tailored to the structure—chain-hung, flange-mounted, or directly bolted. Optional wear pads and protective coatings are available for added longevity. These fenders are engineered to deliver consistent performance over years of operation, reducing maintenance frequency and operational risks. Their uniform shape also allows for easy replacement and interchangeability in existing setups.
Specifications
| Product Name | Cylindrical Marine Fenders |
| Material | Natural Rubber, NBR, EPDM |
| Standard | PIANC2002, HGT2866-2016 |
| Size | ID: 75-1000mm; OD: 150-2000mm or Customized |
| Color | Red, Yellow, Blue, Black, White etc |
| Hardness | 55 Shore A |
| Processing Service | Moulding, Cutting |
| Tensile Strength | ≥18 MPA |
| Elongation at break | ≥400% |
| Feature | Environmentally Friendly |
| Application | Dock, Port, Quay, Boat |
| Advantage | High Resilience |
| Quality | Long Lasting Life |
| Function | Shock Absorption |
| Service | CustomOEM ODM Service |

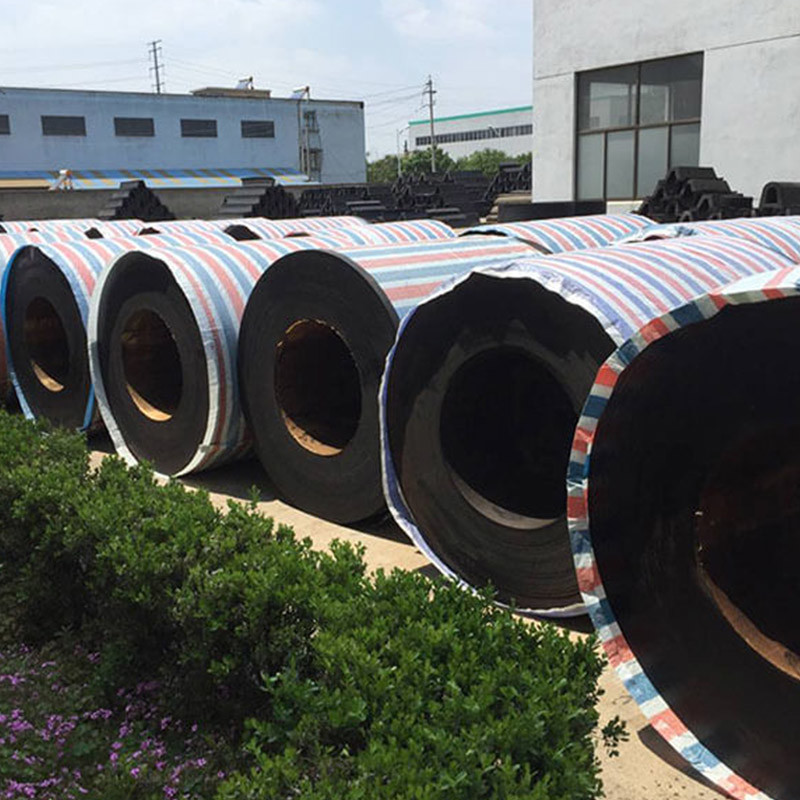

| Packaging | Inner packing: A. Separate, Each piece with a care label + Tarpaulin
B. Batch, Each piece is packed in a transparent plastic film
Outer packing: Tarpaulin or Plastic film |
| Model | Length | Inside Diameter | Outside Diameter |
| Cylindrical | [mm] | [mm] | [mm] |
| HM-CMF150 | Customized Length | 75 | 150 |
| HM-CMF200 | 100 | 200 |
| HM-CMF250 | 125 | 250 |
| HM-CMF300 | 150 | 300 |
| HM-CMF400 | 200 | 400 |
| HM-CMF500 | 250 | 500 |
| HM-CMF600 | 300 | 600 |
| HM-CMF700 | 350 | 700 |
| HM-CMF800 | 400 | 800 |
| HM-CMF900 | 450 | 900 |
| HM-CMF1000 | 500 | 1000 |
| HM-CMF1100 | 550 | 1100 |
| HM-CMF1200 | 600 | 1200 |
| HM-CMF1400 | 700 | 1400 |
| HM-CMF1600 | 800 | 1600 |
| HM-CMF700 | 850 | 1700 |
| HM-CMF800 | 900 | 1800 |
| HM-CMF1900 | 950 | 1900 |
| HM-CMF2000 | 1000 | 2000 |
Features
Wide Range of Sizes
Available in diameters from Ø300mm to Ø1200mm and lengths up to 3000mm, to suit various vessel types and docking conditions.
Long Service Life
Constructed from high-quality marine-grade rubber with superior resistance to aging, wear, and environmental degradation.
High Abrasion Resistance
The rubber compound is engineered to withstand repeated contact and friction from vessels without tearing or deforming.
Excellent UV and Ozone Resistance
Ideal for long-term outdoor exposure, maintaining mechanical properties even under strong sunlight and coastal environments.
Applications
● Dry docks
● Offshore platforms
● Ship-to-ship operations
Advantages
Maintenance-Free, Solid Construction
Unlike pneumatic or foam fenders, our solid rubber cylindrical fenders require no inflation, internal pressure monitoring, or valve maintenance. Once installed, they deliver stable performance for many years without operator intervention.
Environmentally Responsible and Compliant Materials
We use non-toxic, recyclable rubber materials that comply with environmental regulations in global shipping and port operations. Our factory maintains strict standards to minimize waste and pollution during production.
Applicable Across a Wide Range of Vessel Types
Our fenders are suitable for small boats, tugboats, barges, ferries, cargo vessels, and oil tankers. They’re used in ports, terminals, wharves, offshore platforms, and shipyards worldwide, providing reliable protection in diverse marine settings.
Fast Production Lead Time and Efficient Logistics
We maintain efficient material sourcing, inventory systems, and manufacturing cycles to ensure short lead times. Our experienced logistics team handles domestic and international freight with secure packaging and documentation support.
FAQ
1. How is a cylindrical fender installed?

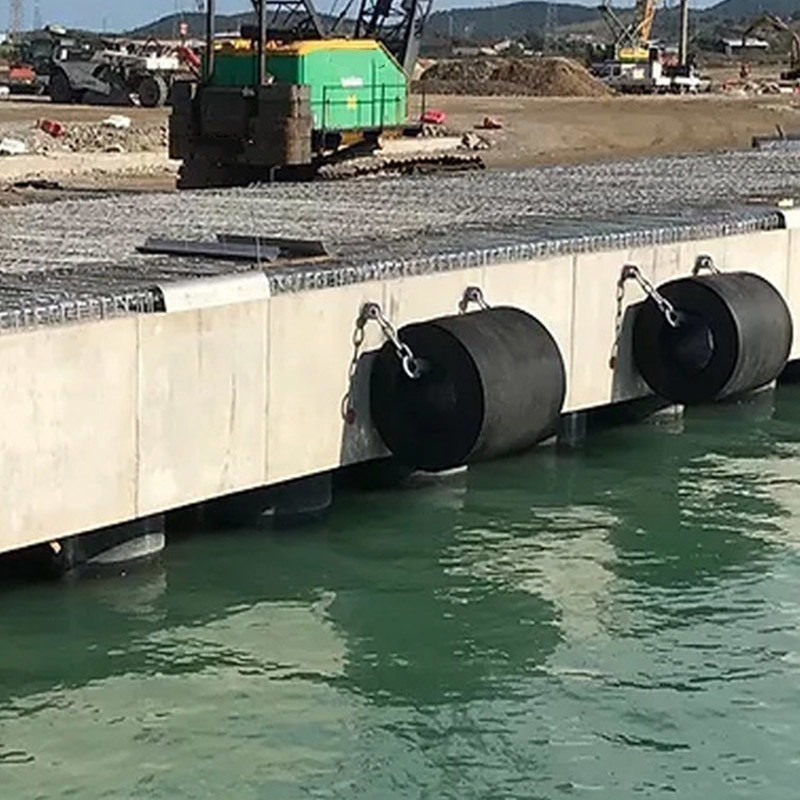

Fenders can be mounted horizontally or vertically using chains, U-bolts, brackets, or directly fixed to the quay wall or vessel hull.
2. What is the energy absorption capacity of your fenders?
Energy absorption varies by size and type; detailed performance charts are available upon request or in our technical datasheets.
3. Can cylindrical fenders be customized?
Yes, we offer full customization including size, length, mounting holes, internal reinforcement, and surface treatments.
4. Do your fenders comply with international standards?
Yes, our fenders are manufactured in accordance with ISO 17357, PIANC guidelines, and other global marine engineering standards.
