Brand Name : Hongruntong Marine
Model Number : HM-PRF34
Place of Origin : China
Certification : ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
MOQ : 1
Price : USD20-USD1800
Packaging Details : Pallet, Wooden Box
Delivery Time : 10-20 Days
Payment Terms : T/T, L/C, D/A, , D/P, Western Union, MoneyGram
Supply Ability : 6800 Pcs/Month
Product Name : Pneumatic Rubber Fender
Standard : ISO17357-1:2014, PIANC2002
Pressure : 50kPa, 80kPa
Color : Black or Customized
Accessories : Tyres, Steel Chain, Hang Ring
Size : Customized
Service Life : 10~15 Years
Usage : Protect Boat
Specifications
Place of Origin | China |
Brand Name | Pneumatic Rubber Fender |
Model Number | HM-PRF34 |
Material | Natural Rubber |
Color | Black |

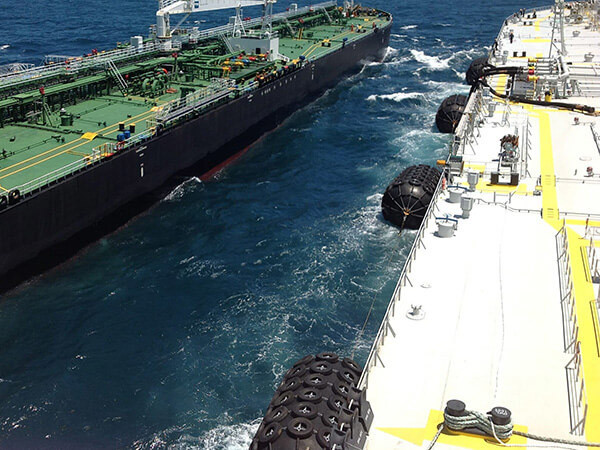

Application | In ports with extreme tidal variations Ship-to-ship lightering operations Oil Gas (typically FSRU) Temporary berthing |
Feature | Heat Resistance |
Sample | Usually free |
Production Method | Moulding |
Temperature | -40℃~300℃ |
Packing | Pallets |
Lead time | 7-14 days |
Diameter x Length [mm] | 50kPa Performance Data | 80kPa Performance Data | ||||
Hull Pressure at GEA / kN / m2 | Reaction Force / kN | Energy Absorption / kNm | Hull Pressure at GEA / kN / m2 | Reaction Force / kN | Energy Absorption / kNm | |
1000 x 1500 | 122 | 182 | 32 | 160 | 239 | 45 |
1000 x 2000 | 132 | 257 | 45 | 174 | 338 | 63 |
1200 x 2000 | 126 | 297 | 63 | 166 | 390 | 88 |
1350 x 2500 | 130 | 427 | 102 | 170 | 561 | 142 |
1500 x 3000 | 153 | 579 | 153 | 174 | 761 | 214 |
1700 x 3000 | 128 | 639 | 191 | 168 | 840 | 267 |
2000 x 3500 | 128 | 875 | 308 | 168 | 1150 | 430 |
2500 x 4000 | 137 | 1381 | 663 | 180 | 1815 | 925 |
2500 x 5500 | 148 | 2019 | 943 | 195 | 2653 | 1317 |
3300 x 4500 | 130 | 1884 | 1175 | 171 | 2476 | 1640 |
3300 x 6500 | 146 | 3015 | 1814 | 191 | 3961 | 2532 |
3300 x 10600 | 158 | 5257 | 3067 | 208 | 6907 | 4281 |
4500 x 9000 | 146 | 5747 | 4752 | 192 | 7551 | 6633 |
* Other size can be produced follow client's requirements. |
Features
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size and quantity for you.
2: I want to try your rubber marine fender, but I never use it and don't know how to use, can you help me?
Answer: We will send instruction book together with rubber marine fender.
3: What's your MOQ?
Answer: Our MOQ is 1PC. Sample order is accepted.
4: How about the lifespan of your rubber marine fender?
Answer: Designed lifespan of our rubber marine fender is 6 to 10 years.
5: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repair or replace the new ones for you if it proved to be our quality problem.
6: What kind of certificate can you provide?
Answer: ISO9001, CCS, BV, SGS, RS, ABS etc. certificate is available.
![]() |

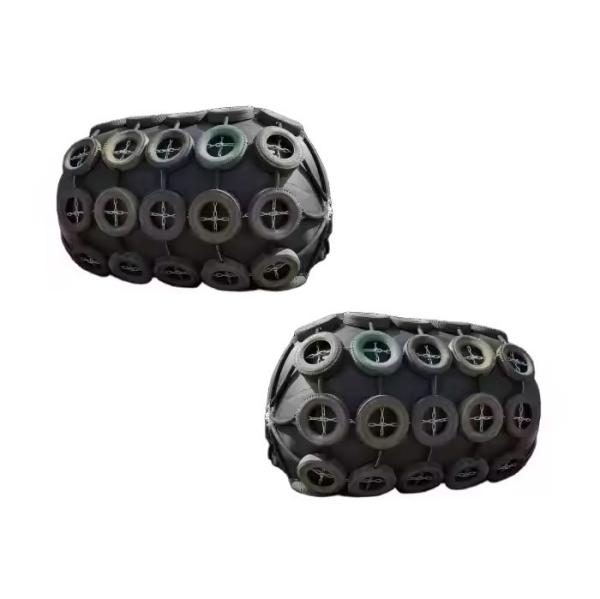

Corrosion Resistant Pneumatic Baby Fender for 15 Years Service Life Images |
