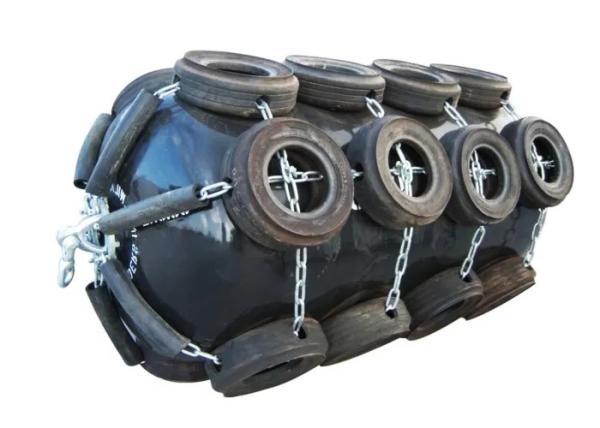

Ship Protective Boat Foam Boat Fenders Marine Dock Fenders For Dock Port Wharf
Description
The EVA foam filled fender uses polyurethane elastomer and as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.
Polyurethane elastomer is a new kind synthetic polymer whose performance has both advantages of plastic and rubber. The high strength of plastic and good elasticity of rubber.
Advantages of Polyurethane Elastomer
● High wear resistance which is 3-5times of nature rubber.
● Excellent oil resistance which is 4times of NBR.
● High mechanical strength.Its tensile intention and tear strength and burden capability are several times of common rubbers.
● Excellent tolerance of acid, alkali, low temperance and organic solvent.
● High metal-bonding performance.
● Wide hardness range from Shore A100 adjustable.
Characteristic
► Having the capability of floating, not easily influenced by the ebb and flow of the tide.
► Bright colors. Various colors can be offered according to the customers demands.
► Compared with inflatable fender, it boasts the characteristics if safety and maintenance’ free with working life as long as 15 to 30 years, wanting no inflating, resistant to scarification, pricking, friction, seawater, acid and alkali.
► Solid but light,easy to install and move.
► When compressed to 60%, it’s reaction force grows obviously from little to largeness, and energy absorption is very high.
Advantage
● Good Hydrophobicity.
● High Performance of Outer Coating Layer.
● Fast and Easy Installation.
● Multiple Color Options.
● Multiple Form & Size Options.
● High energy absorption capability and lower reaction force.
Specifications
| Diameter x Length | Energy absorption at 60% comp | Reaction force at 60% comp | Approx. weight |
| (mm) | (kNm) | (kN) | (kg) |
| 300 x 1000 | 3.8 | 54 | 11 |
| 500 x 1000 | 10.6 | 91 | 41 |
| 600 x 1000 | 15.3 | 109 | 49 |
| 600 x 1000 | 18.3 | 131 | 55 |
| 700 x 1500 | 31 | 191 | 85 |
| 750 x 1500 | 36 | 204 | 89 |
| 900 x 1800 | 62 | 294 | 140 |
| 1000 x 1500 | 64 | 272 | 125 |
| 1000 x 2000 | 85 | 363 | 170 |
| 1200 x 2000 | 122 | 436 | 275 |
| 1200 x 2400 | 146 | 523 | 365 |
| 1250 x 2000 | 132 | 454 | 353 |
| 1250 x 2500 | 165 | 567 | 410 |
| 1500 x 3000 | 286 | 817 | 570 |
| 1500 x 4000 | 381 | 1089 | 720 |
| 1700 x 3000 | 367 | 926 | 700 |
| 1700 x 3500 | 428 | 1080 | 780 |
| 1800 x 3000 | 412 | 980 | 850 |
| 1800 x 3600 | 494 | 1176 | 965 |
| 2000 x 3000 | 508 | 1089 | 965 |
| 2000 x 3500 | 593 | 1271 | 1100 |
| 2000 x 4000 | 678 | 1452 | 1220 |
| 2400 x 4000 | 976 | 1743 | 1720 |
| 2400 x 4800 | 1171 | 2091 | 2140 |
| 2500 x 4000 | 1059 | 1815 | 1865 |
| 2500 x 5000 | 1324 | 2269 | 2500 |
| 2500 x 5500 | 1456 | 2496 | 2675 |
| 2700 x 5400 | 1668 | 2647 | 2865 |
| 3000 x 5000 | 1925 | 2750 | 3200 |
| 3000 x 6000 | 2287 | 3268 | 3740 |
| 3300 x 6500 | 2998 | 3894 | 4735 |
| 3600 x 7200 | 3953 | 4706 | 5800 |
| 4000 x 8000 | 4522 | 5809 | 8700 |
| 4200 x 8400 | 6277 | 6405 | 10000 |
| 4500 x 9000 | 7720 | 7353 | 10700 |
Applications
● Oil & Gas Terminals
● Ship-to-ship operations
● Ship-to-shore operations
● Navy vessel berths and cruise terminals
Structure
Foam Core - The closed cell EVA foam core used inside offers unsink ability during operation.
Outer Rubber + Nylon Cord Fabrics - Specifically designed to seal EVA foam inside and to prevent any leakage.
Polyurea Spraying Coating - Permanent spray on coatings that protect the surface of fender body. It is more durable than rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold.
