Pianc 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame

Name: Pianc 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame
Brand: DockFender
Price: 220 USD

Pianc 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame Manufactures

Brand Name : DockFender

Model Number : DF-C1000H

Certification : PIANC 2002, SGS, ISO9001

Place of Origin : China

MOQ : 1 Piece

Price : USD220-1560 Per Piece

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 660 PCS Per Month

Delivery Time : 5-6 Work Days

Packaging Details : Export Standard

Product Name : PIANC 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame

Material : High Quality NR/NBR

Reaction Force : 29-4626KN

Energy Absorption : 4-6102KNM

Standard : PIANC2002, ABS, SGS, ISO9001

Warranty : 24 Months

Packing : Pallet and Wooden Case

Contact Now

PIANC 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame

Description

Cell rubber fenders are also known as SC rubber fenders. They are among one of the most used rubber fender in the maritime industry. Its simplicity, easy to installation, strength and high performance has made a solid performance record. Available in variety of shapes and size they are capable of supporting both small and large vessels with minimum reaction force. The key feature of this design is that it can be used for vessels with low hull design.

Furthermore they can be used alone, as a pair or in multiple combinations. It consists of a rubber embedded flange mounted on a hollow cylindrical body. It offers high energy to weight ratio and is a cost effective solution to the modern parallel motion fenders.

Specifications

Place of Origin	China
Brand Name	DockFender
Model Number	DF-C1000H
Product Name	PIANC 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame
Material	High Quality NR/NBR
Warranty	3 Years
Standard	PIANC2002, HGT2866-2016
Tensile Strength	≥16 MPA
Feature	Durable
Surface	Shiny or dull
Sample Time	3-5 days
Packing	Pallet or Wooden Case
Application	Port, Dock, Boat

Model	H	h	D1	D2	n-t
Cell	[mm]	[mm]	[mm]	[mm]	[mm]
DF-C400H	400	25	650	550	30
DF-C500H	500	25	650	550	32
DF-C630H	630	30	840	700	39
DF-C800H	800	30	1050	900	40
DF-C1000H	1000	35	1300	1100	47
DF-C1150H	1150	40	1500	1300	50
DF-C1250H	1250	45	1650	1450	53
DF-C1450H	1450	47	1850	1650	61
DF-C1600H	1600	50	2000	1800	61
DF-C1700H	1700	55	2100	1900	66
DF-C2000H	2000	55	2200	2000	74
DF-C2250H	2250	60	2550	2300	74
DF-C2500H	2500	70	2950	2700	90
DF-C3000H	3000	75	3350	3150	90

Features

● Easy assembly & installation
● Good shear force resistance
● Cost-effective: large footprint leads to a good load distribution over the front panel, which results in a lighter panel construction
Very robust
● 40 years proven track record

Applications

● Container & Bulk Terminals

● Oil & Gas Terminals

● General Cargo Terminals

● Cruise Terminals

● Ferry & RoRo Terminals

● Navy

Advantages

◆ Original factory outlet.

◆ PIANC2002 and ISO9001/14001 standard.

◆ Imported raw materials-natural rubber.

◆ 100% self-inspection before shipment, third-party available.

◆ Easy installation with operation manual or on-site technical guidance.

Rubber Properties

PROPERTIES	TEST STANDARD	VALUES
Compound	-	NR / SBR
Density (Specific Gravity)	DIN 53505	1200 kg/m3
Tensile Strength	DIN 53504	≥16 MPa
Elongation at Break	DIN 53504	≥350%
Tear Resistance (23°C)	DIN 53507	≥80 N/cm
Abrasion Resistance	DIN 53516	≤100mm3
Compression Set (24hrs @ 70°C)	DIN 53517	≤40%
Ozone Resistance (ppm 20% 72hrs @ 40°C)	ISO 143/1	No cracking visible by eye
Change In Hardness	DIN 53504	≤5°
Change In Tensile Strength	DIN 53504	≥80%
Change In Elongation at Break	DIN 53504	≥80%
Minimum Temperature	-	-30°C
Maximum Temperature	-	+70°C

Pianc 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame

Product Tags:

marine mooring cell rubber fender

steel frontal frame cell rubber fender

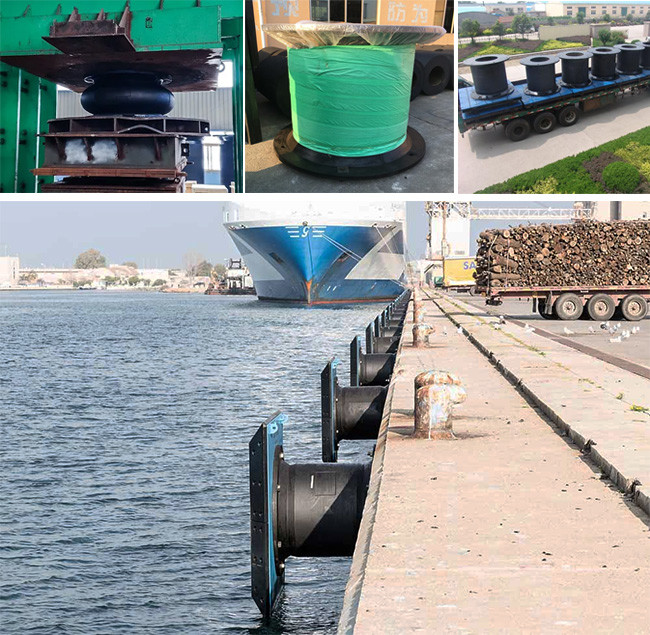

Pianc 2002 Marine Mooring Cell Rubber Fender Bumper With Steel Frontal Frame Images
